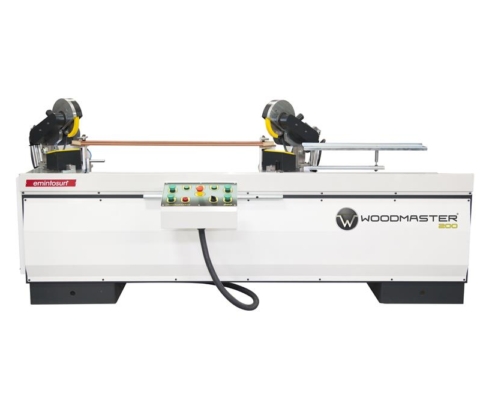

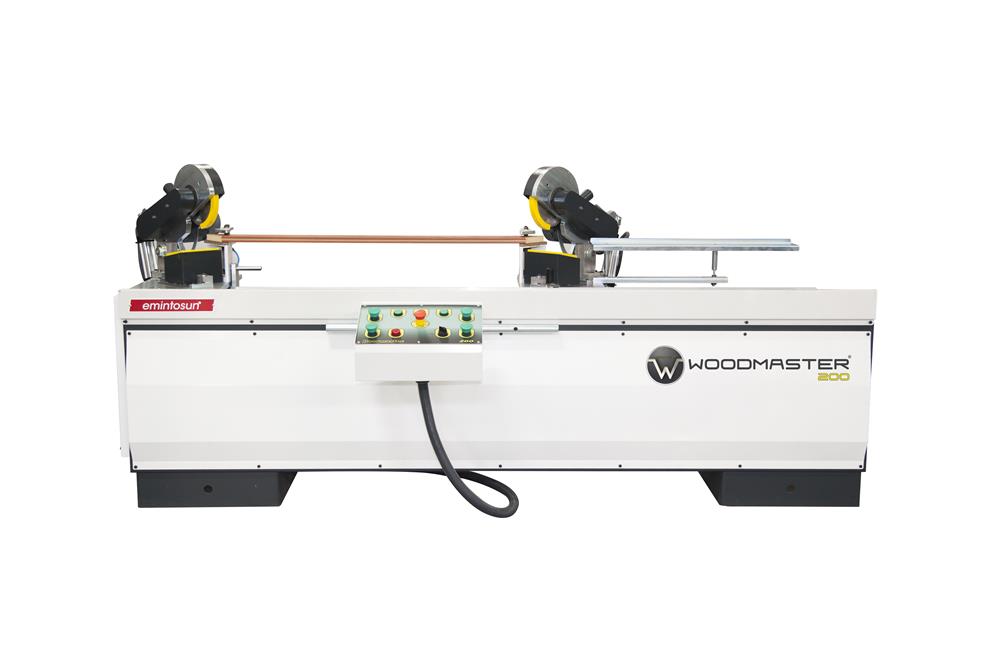

WOODMASTER 200 aoutomatic double mitre saw and double I type routing machine.

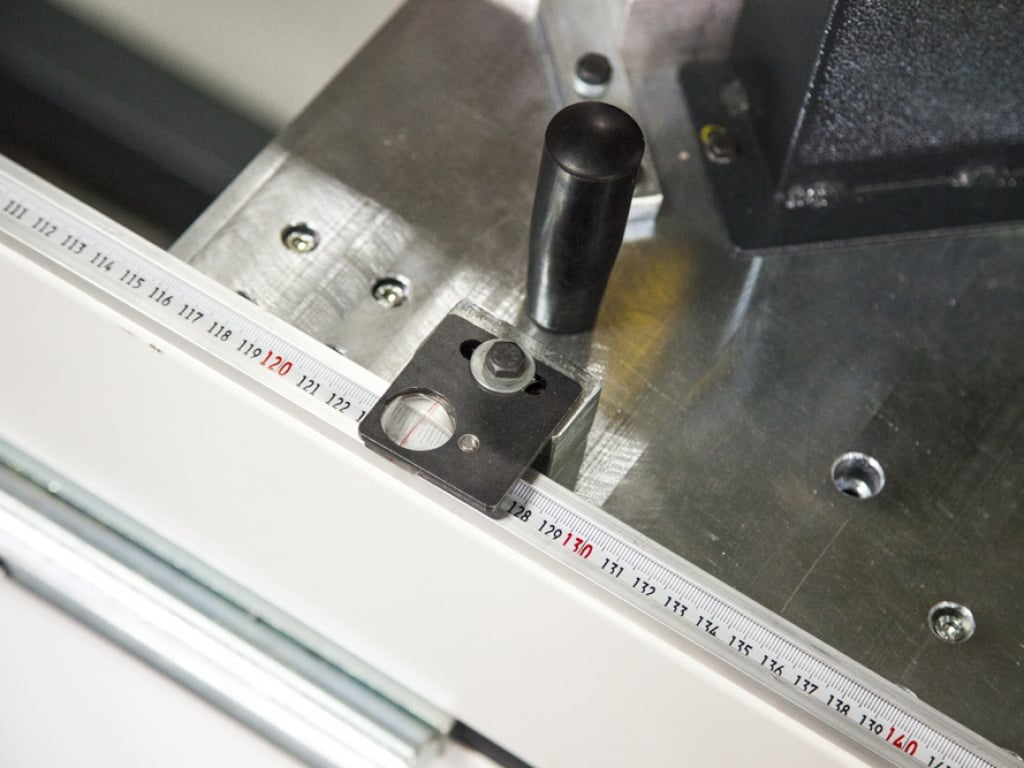

Manuel positioning control system.

• Fixed 45 °
• Saw blade Q 200 mm
• Max cutting lenght 190 x 2000 mm ( standart )
• Cutting capacity 75 x 30 mm ( width/thickness)
• Voltage 220-380 v 50 hz
• Cutting motor 0,55 kw /4500 rpm
• Routing motor 0,55 kw /20.000 rpm
• Dust exhaust ø 40 mm
• Aır inlet pressure : 6-8 bar
• Dimensions ; width : 80 cm lenght : 285 cm Heigth : 130 cm
• Weight :~300 kg
• Distance of between drilling : standart ( 28/32 mm)
