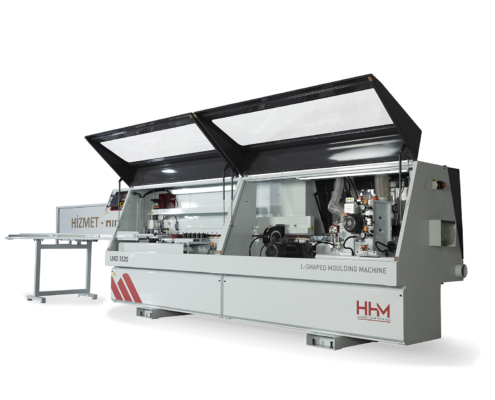

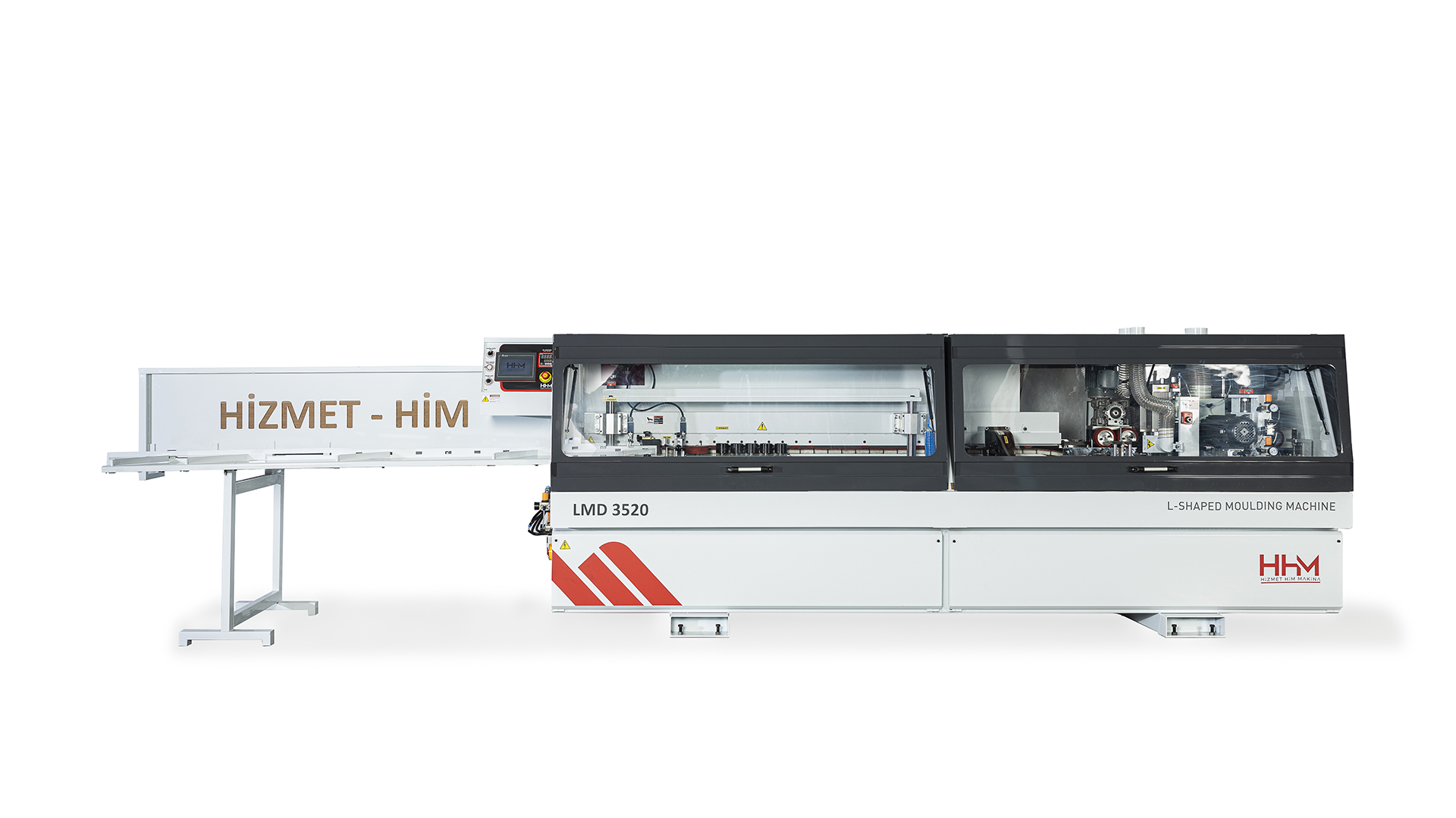

LMD 3520 Camber
LMD 3520 Camber

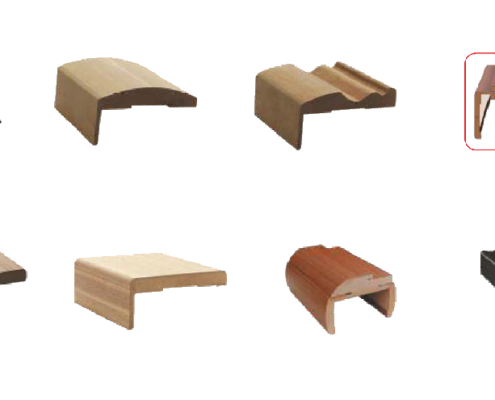

This machine, like the previous models, is used in the production of the door moldings for the door frames.

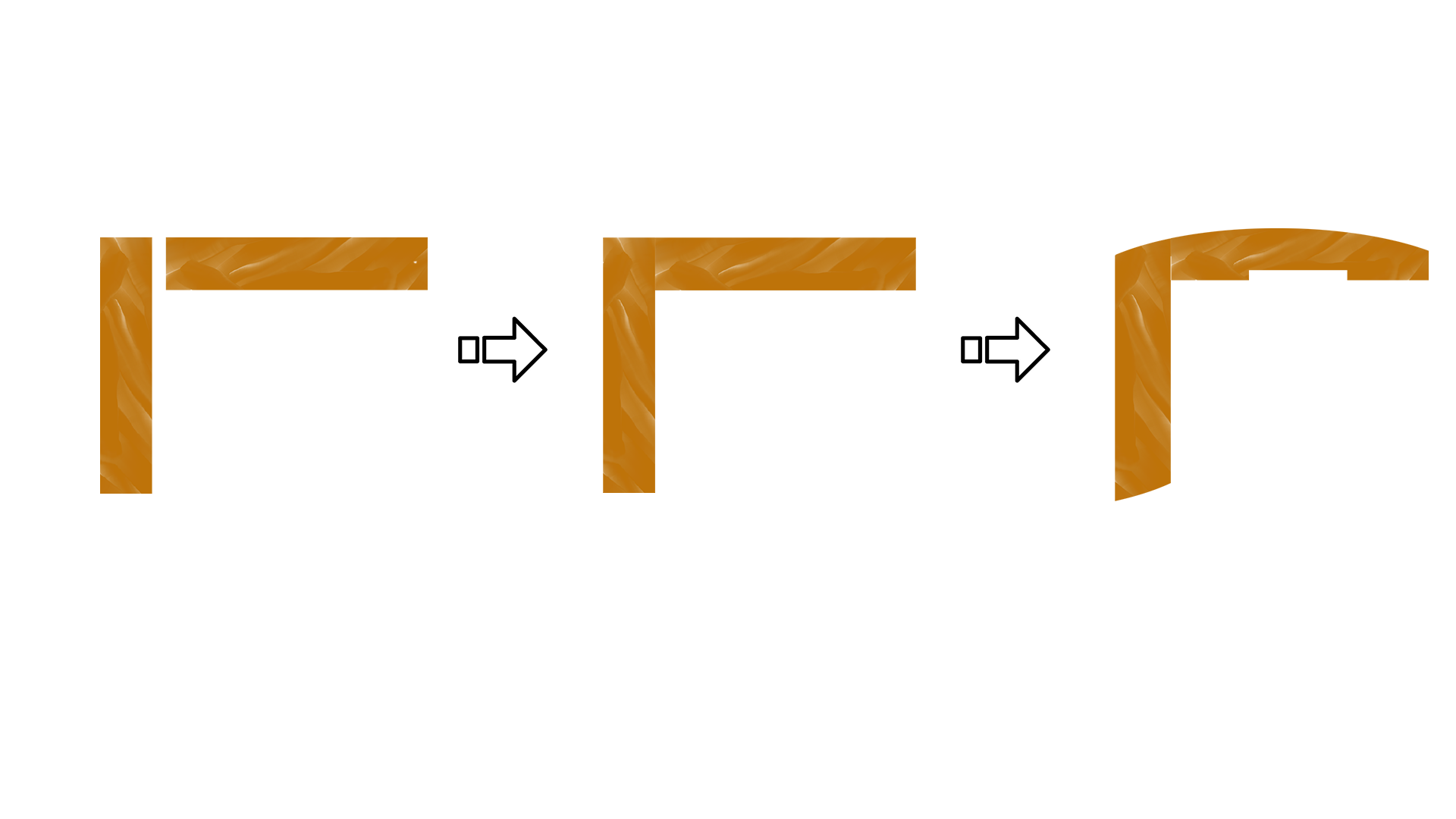

Its distinctive feature is that with the help of this equipment you can produce both straight and convex (dished) moldings.
- Automatic Feeding Of Profiles
- Gluing “L” Shaped Sill
- Right-Left Milling
- Grooving
- Joint(juncture) Opening
- Chamfering
- Capacity: 300 – 500 Pieces Per Hour
Technical Features
Thickness of main workpiece 8-30 mm
Thickness of side workpiece 3-6 mm
Width of main workpiece 65-125 mm
Width of side workpiece 10-45 mm
Working Speed 10-25m/dak
Capacity of the glue pot 4 kg
Resistance Power of glue pot 3800 watt
Total Motor Power 16 kw
Output for Sawdust 4 adet
Total Electric Power 18 kw
Air pressure 6 bar
Mains Voltage 380 V, 50-60 Hz
Current Intensity 78 A
Working Dimensions (L/W/H) 6500 x 1200 x 1400 mm
Shipping Dimensions (L/W/H) 4500 x 1200 x 1700 mm
Weight 1820 Kg
