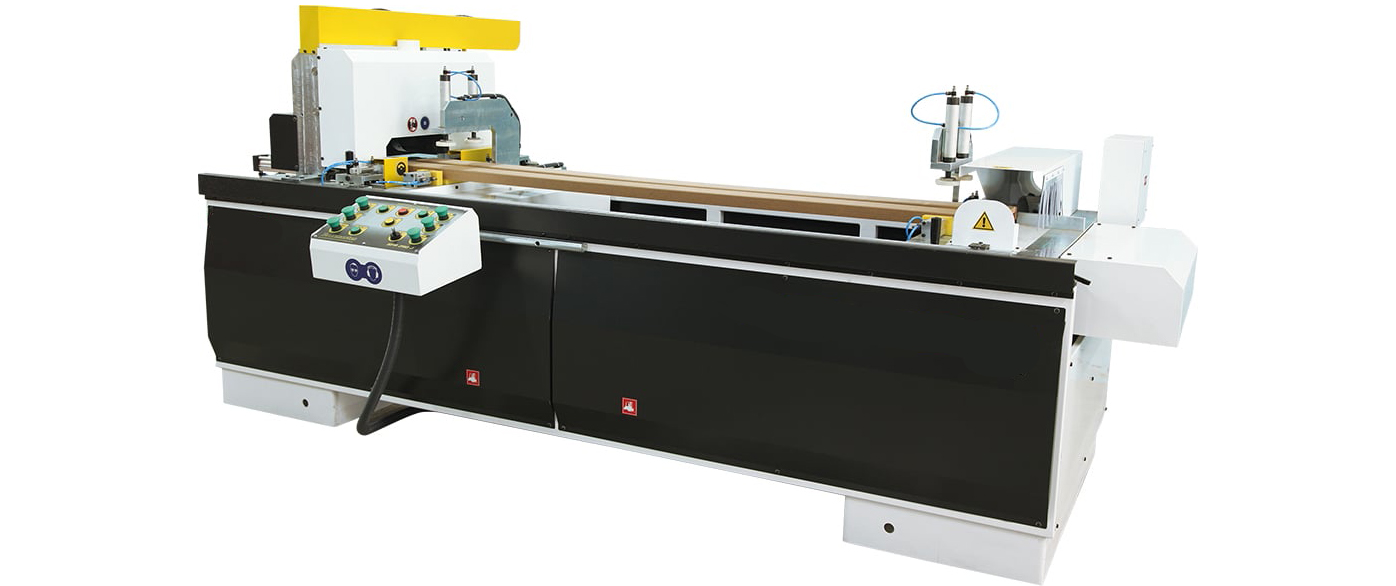

SFR 250 J

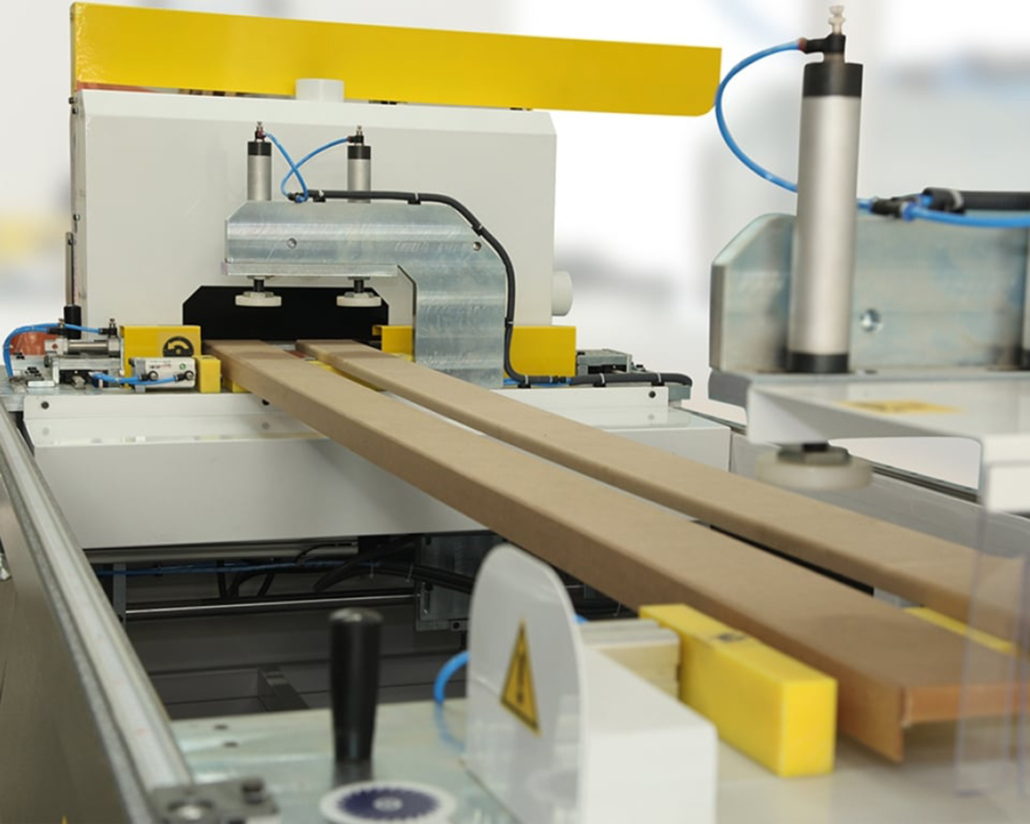

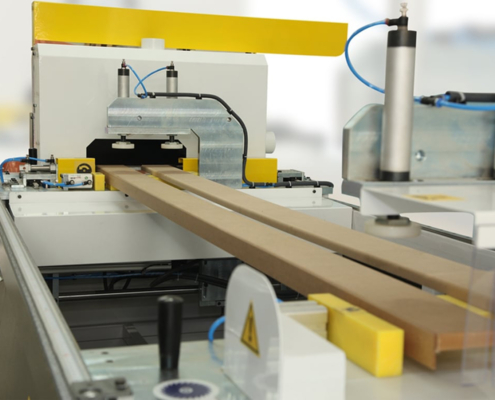

The machine designed for door jamb double end cutting and milling for “L” place.
• The operation time is between 10-15 seconds.

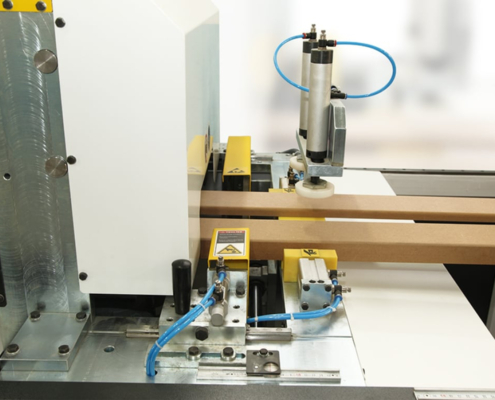

• Safety clamping system is controlling by Pneumatical control.
• Capability of adjustment to max 2.2metre by manuel movement.
• Double hand controlling system

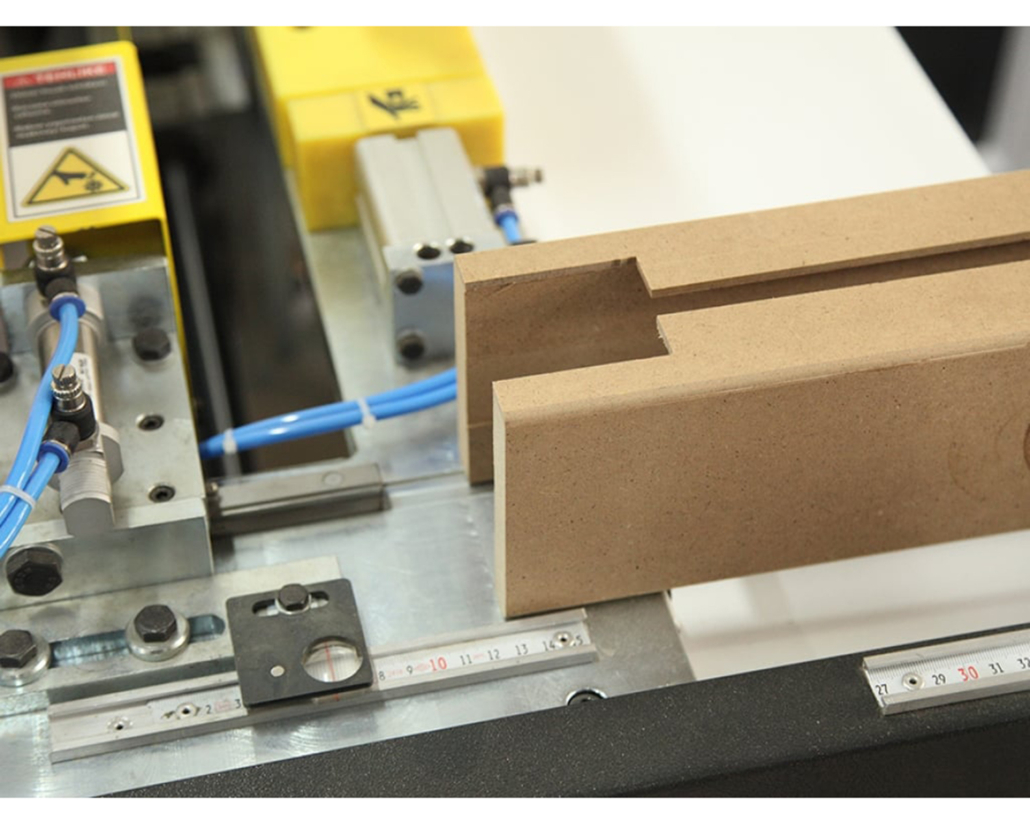

• Automatic L place milling system
Technical Features
Automatic cutting capability | Right / Left |
Manuel adjustment for door jamb L dimension | |
Door jamb cutting | Automatic |
Max cutting L dimension | 120mm / Both |
Max door jamb depth | 40mm |
Min/max door jamb length | 600mm / 2200mm |
Fixed Cutting saw | Ø 300 – Ø 250 / Ø 180 x2 piece |
Movable cutting saw | Ø 350 |
Total power | 4 kw |
Width/length/height | 1500x3300mm/150mm |
If you need more info! You can use our fast contact form to get more information about our machines. Available catalogs, photos, videos and more…
