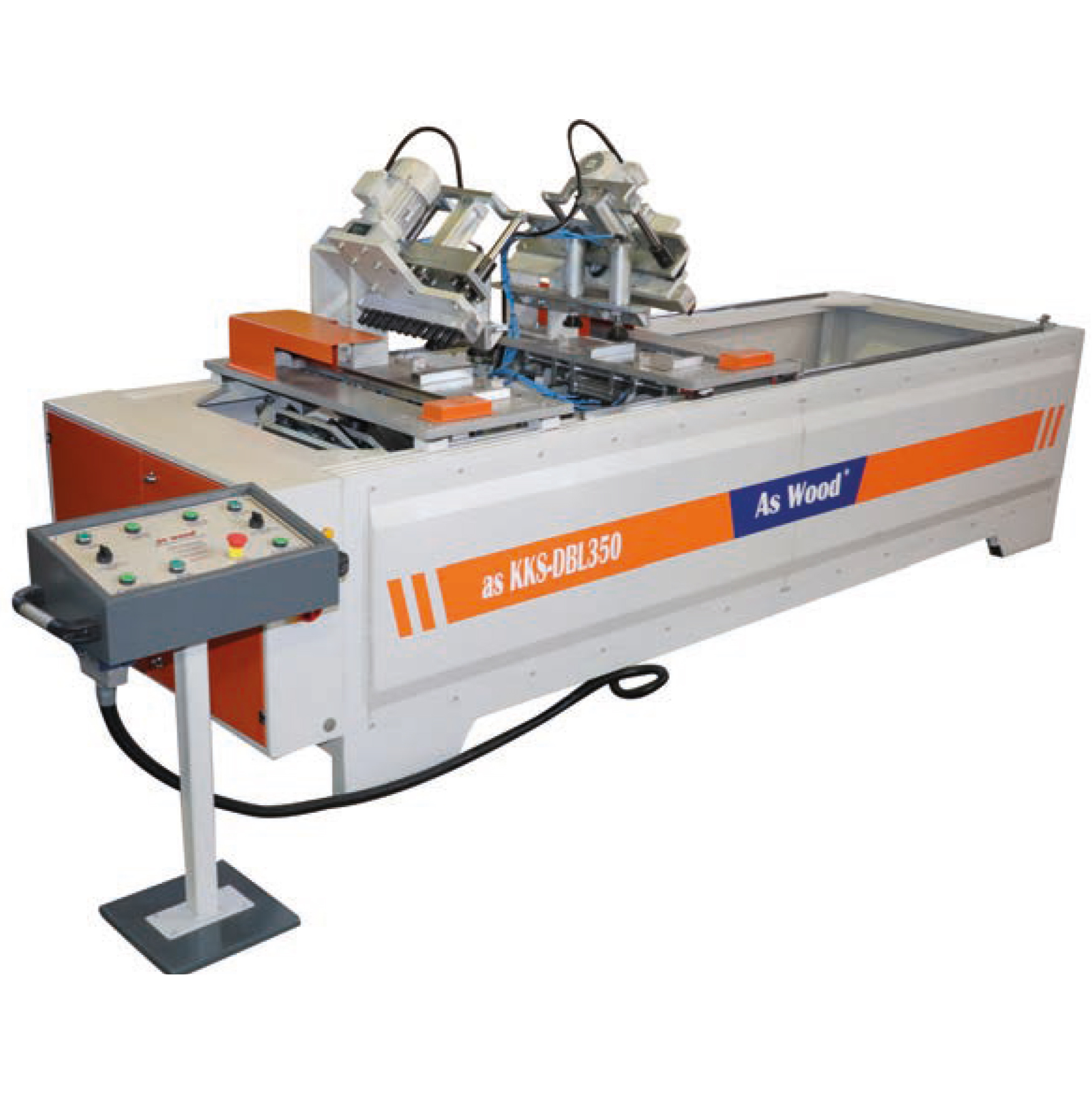

AS WOOD DOOR FRAME SIZING MACHINE
- Max. Cutting Widht Capacity : 260 mm
- Max. Cutting Length : 2400 mm
- Min. Cutting Length : 650 mm
- Max. High : 90° – 90 mm
- Min. High : 45° – 45 mm
- Cutting Unit Piece : 2
- Cutting Unit Speed : 3800 d/min
- Saw Dimater : 350 mm
- Boring Units Piece : 2
- Boring Units Speed : 2800 d/min
- Distance of Drils Hole Center : 32 mm x 7 pcs
- Power of the Cutting Motor : 2 x 2,2 kW
- Power of the Boring Motor : 2x 1,1 kW
- Total Power : 6,6 kW
- Voltage : 380 v / 50 Hz
- Air Pressure : 6 bar
- Length : 3250 mm
- Width : 1000 mm
- Height : 1450 mm
- Weight : 750 kg
If you need more info! You can use our fast contact form to get more information about our machines. Available catalogs, photos, videos and more…
